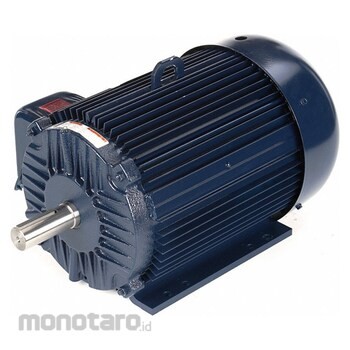

MARATHON MOTORS 3-Phase NEMA Frame General Purpose AC Motor 256TTFL16033 Totally Enclosed Fan-Cooled Rigid Base Mount 20 HP 1775rpm 230/460V 256T 1pc
(0 Ulasan)
Dijual Oleh:
ReVaNstore
ReVaNstore
Harga:
Rp821,398,890
Pengembalian dana:
Membagikan:
Produk Terlaris
-
Marshall Major IV - Brown
Rp2,799,000 -
Meridian Bathtub Aryclic Bulgari Spa Whirpool
Rp58,139,000
| Model Number | 256TTFL16033 |
|---|---|
| Unit | 1pc |
| UNSPSC | 26101612 |
| Ins. Class | F |
| Manufacturers Warranty Length (y) | 1 |
| NEMA Design | B |
| No. of Speeds | 1 |
| HP | 20 |
| HP @ 50Hz | 20 |
| Usable @ 200V | No |
| Usable @ 208V | No |
| Inverter Rated | Yes |
| Max. Ambient Temp. (⁰F) | 104 |
| Weight (lb) | 309 |
| Frame | 256T |
| Motor Bearings | Ball |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | None |
| Motor Shaft Design | Keyed |
| Nameplate RPM | 1,775 |
| Phase | Three |
| Shaft Dia. (in) | 1-5/8 |
| Shaft Length (in) | 4-3/8 |
| Hz (Hz) | 60/50 |
| CC Number | CC003A |
| Motor Shaft Rotation | CW/CCW |
| Nominal Efficiency (%) | 94.1 |
| Length Less Shaft | 20-7/8 |
| Overall Length | 25-1/4 |
| Motor Design | 3-Phase |
| Voltage (VAC) | 230/460 |
| Motor Frame Material | Aluminum |
| Full Load Amps (A) | 48.0/24.1 |
| Full Load Amps @ 50Hz (A) | 48.0/24.1 |
| Duty cycle | Continuous |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Rpm Range | 1,701-1,800 |
| Manufacturer Part Number | 256TTFL16033 |
| Bearing Protection | Shaft Slinger |
| Motor Application | General Application |
| Standards | CE; CSA; UL Recognized |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Berat (Kg) | 142.8 |
| Tanggal Produk Terdaftar | 01 April 2024 |
| Terakhir Diperbaharui | 13 May 2024 |
